Explosion-proof Digital Pallet Truck
Explosion-proof digital pallet truck designed for safe and reliable weighing in special working environments.
It features waterproof, wear-resistant and impact-resistant performance, suitable for chemical, pharmaceutical, warehouse and industrial handling applications.

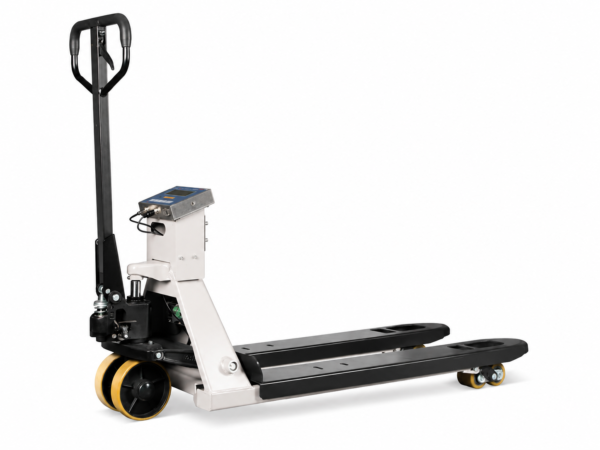

SF Explosion-proof Digital Pallet Truck
Explosion-proof digital pallet truck designed for safe weighing and material handling in chemical, pharmaceutical, warehouse and other special working environments.
| Model | Unit | SF Explosion-proof Indicator | ||
|---|---|---|---|---|
| Rated Load | kg | 2000 | 2500 | 3000 |
| Lift Height | mm | 195 | ||
| Fork Length | mm | 1150 | ||
| Fork Overall Width | mm | 555 / 690 | ||
| Single Fork Width | mm | 165 | ||
| Lowered Height | mm | 85±2 | ||
| Wheel Size | Φ (mm) | Steering Wheel: 180×50, Load Wheel: 80×70 | ||
| Weighing Accuracy | kg | 0.5 | ||
| Wheel Material | Polyurethane | |||
| Waterproof Grade | IP-66 | |||
| Net Weight | kg | 555 Width: 96 / 690 Width: 99 | 555 Width: 97 / 690 Width: 100 | 555 Width: 98 / 690 Width: 101 |
| Battery Voltage | Ah/V | Lithium Battery 4V / 10Ah | ||
| Packing Size | cm | 555 Width Model: 6 units / pallet (L225 × W56 × H82) 690 Width Model: 6 units / pallet (L225 × W56 × H72) | ||
