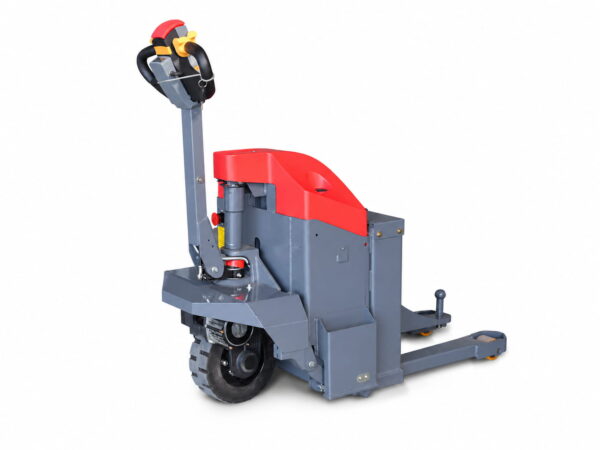

T30-Q Electric Tow Tractor
Load Capacity
500+
Units Deployed
1-Year
Warranty
CE+
Certified
2 Weeks
Fast Delivery
Specifications
Every parameter engineered for modern warehouse operations across Europe and North America.
用于高效厂内运输的紧凑型电动牵引车
Palletslift 全电动牵引车专为仓库牵引、车间配送和工厂物料搬运而设计。
它体积小巧、牵引力强劲、操作简便，可轻松步行跟上，有助于提高日常搬运效率，同时减少人工劳动。
用于仓库牵引和厂内运输的电动牵引车
结构紧凑、动力强劲、操作简便，适用于车间配送、仓库拖运、工厂转运和短距离物料搬运。
用于日常物料搬运的全电动牵引车
Palletslift 全电动牵引车专为仓库牵引、车间配送和厂内短距离运输而设计。其紧凑的车身和步行式操控方式，使日常物料搬运更加轻松高效。
- 紧凑的机身，便于灵活移动
- 步行式操作，易于控制
- 适用于手推车、拖车和工厂运输
- 适用于日常拖曳任务的实用设计
A型框架双肋牵引设计
加固的A型框架结构有助于提高牵引稳定性和负载支撑能力。加厚的钢肋和实心球形挂钩使连接更加便捷，同时为货物牵引提供可靠的性能。
- 16毫米加厚钢结构
- 用于快速连接的实心球形挂钩
- 稳定牵引手推车和拖车
- 专为可靠的仓储运输而设计
尺寸紧凑，牵引力强劲
紧凑的布局使其适用于狭窄的通道和繁忙的工厂区域。采用 48V 电力驱动和手推式操作，可支持车间配送、仓库拖运和厂内运输。
- 48V电源系统，输出稳定
- 结构紧凑，适用于狭窄的工作区域
- 强大的牵引力，满足日常运输需求
- 可自定义配置
多功能手柄，操作简便
符合人体工程学的手柄集成了前进/后退控制、电动行走、电量显示和安全功能。舒适的握感和防水设计有助于操作人员在日常工作环境中更好地控制设备。
- 前进和后退控制
- 电池状态显示
- 舒适的防滑握把
- 防尘防水，确保可靠使用
1800W 无刷铜芯电机
这款1800W永磁无刷铜芯电机扭矩强劲、动力输出平稳、耐磨性好，专为工业工作环境下的长时间牵引作业而设计。
- 1800W大功率电机
- 高扭矩带来更强的拉力
- 无刷设计，维护成本更低
- 持久耐用，可长期使用
磷酸铁锂电池系统
The lithium battery system is designed for stable output, longer service life and extended working time. It helps support high-frequency warehouse towing and continuous factory transfer tasks.
- 3000+ charge cycles
- Stable LiFePO4 power output
- Longer battery life and safer operation
- Extended range for daily work
ASG Smart Chip Temperature Control
The ASG smart chip helps monitor operating status and control temperature during continuous use. Fast response and multiple protection functions help improve operational safety and equipment life.
- Real-time temperature monitoring
- Fast response for smooth operation
- Multiple protections for safer use
- Stable performance during long operation
Full Electric Tow Tractor Specification Table
2300KG / 3300KG / 4300KG configurations are displayed together for easier comparison.
| Item | Unit | 2300KG Model | 3300KG Model | 4300KG Model |
|---|---|---|---|---|
| Rated Load | KG | 2300 | 3300 | 4300 |
| Drive Wheel Size | MM | Φ300×100 | Φ300×100 | Φ300×100 |
| Front Wheel Size | MM | Φ80×70 | Φ80×70 | Φ80×70 |
| Lowest Ball Hitch Height | MM | 190 | 190 | 190 |
| Highest Ball Hitch Height | MM | 304 | 304 | 304 |
| Ball Hitch Diameter | MM | 40 | 40 | 40 |
| Overall Width | MM | 570 | 570 | 570 |
| Overall Height | MM | 1260 | 1260 | 1260 |
| Overall Length | MM | 1348 | 1348 | 1348 |
| Drive Motor Power | V/KW | 48V / 1.8KW | 48V / 1.8KW | 48V / 1.8KW |
| Lifting Motor Power | V/KW | 48V / 0.8KW | 48V / 0.8KW | 48V / 0.8KW |
| Battery Voltage | V | 48 | 48 | 48 |
| Battery Capacity | AH | Lead-acid 20/32 Lithium 20/40/60 |
Lead-acid 20/32 Lithium 20/40/60 |
Lead-acid 20/32 Lithium 20/40/60 |
| Battery Type | Type | Lead-acid / Lithium | Lead-acid / Lithium | Lead-acid / Lithium |
| Travel Speed Loaded / Unloaded | KM/H | 4 / 4.5 | 4 / 4.5 | 4 / 4.5 |
| Lifting Speed Loaded / Unloaded | MM/S | 45 / 40 | 45 / 40 | 45 / 40 |
| Lowering Speed Loaded / Unloaded | MM/S | 65 / 60 | 65 / 60 | 65 / 60 |
| Max Gradeability Loaded / Unloaded | % | 15% | 15% | 15% |
| Minimum Turning Radius | MM | 1550 | 1550 | 1550 |
Need A Quote For This Electric Tow Tractor?
Tell us your towing capacity, battery type, trailer size and working environment. We will recommend a suitable configuration and provide a quotation quickly.
Need A Price For This Full Electric Pallet Truck?
Tell us your required load capacity, fork size, battery type and working environment.
Our team will recommend a suitable model and provide a quotation quickly.
Request A Quote
Please fill in your requirements below.
📊 技术参数
| Item | Unit | 2300KG Model | 3300KG Model | 4300KG Model |
|---|---|---|---|---|
| Rated Load | KG | 2300 | 3300 | 4300 |
| Drive Wheel Size | MM | Φ300×100 | Φ300×100 | Φ300×100 |
| Front Wheel Size | MM | Φ80×70 | Φ80×70 | Φ80×70 |
| Lowest Ball Hitch Height | MM | 190 | 190 | 190 |
| Highest Ball Hitch Height | MM | 304 | 304 | 304 |
| Ball Hitch Diameter | MM | 40 | 40 | 40 |
| Overall Width | MM | 570 | 570 | 570 |
| Overall Height | MM | 1260 | 1260 | 1260 |
| Overall Length | MM | 1348 | 1348 | 1348 |
| Drive Motor Power | V/KW | 48V / 1.8KW | 48V / 1.8KW | 48V / 1.8KW |
| Lifting Motor Power | V/KW | 48V / 0.8KW | 48V / 0.8KW | 48V / 0.8KW |
| Battery Voltage | V | 48 | 48 | 48 |
| Battery Capacity | AH | Lead-acid 20/32 Lithium 20/40/60 |
Lead-acid 20/32 Lithium 20/40/60 |
Lead-acid 20/32 Lithium 20/40/60 |
| Battery Type | Type | Lead-acid / Lithium | Lead-acid / Lithium | Lead-acid / Lithium |
| Travel Speed Loaded / Unloaded | KM/H | 4 / 4.5 | 4 / 4.5 | 4 / 4.5 |
| Lifting Speed Loaded / Unloaded | MM/S | 45 / 40 | 45 / 40 | 45 / 40 |
| Lowering Speed Loaded / Unloaded | MM/S | 65 / 60 | 65 / 60 | 65 / 60 |
| Max Gradeability Loaded / Unloaded | % | 15% | 15% | 15% |
| Minimum Turning Radius | MM | 1550 | 1550 | 1550 |
